CMCC Work Study- 7' x 14' Enclosed Cargo Trailer

\

This drawing and the above photos are a plan for a cabinet unit that will house tent and tent poles for the CEMAC trailer. We mocked up the equipment so we could get accurate measurements for the cabinet unit. The unit has one vertically sliding door to house the long poles on the bottom and the shorter poles stashed in a cabinet with the drop down door.

The result was very functional and suiting for the equipment!

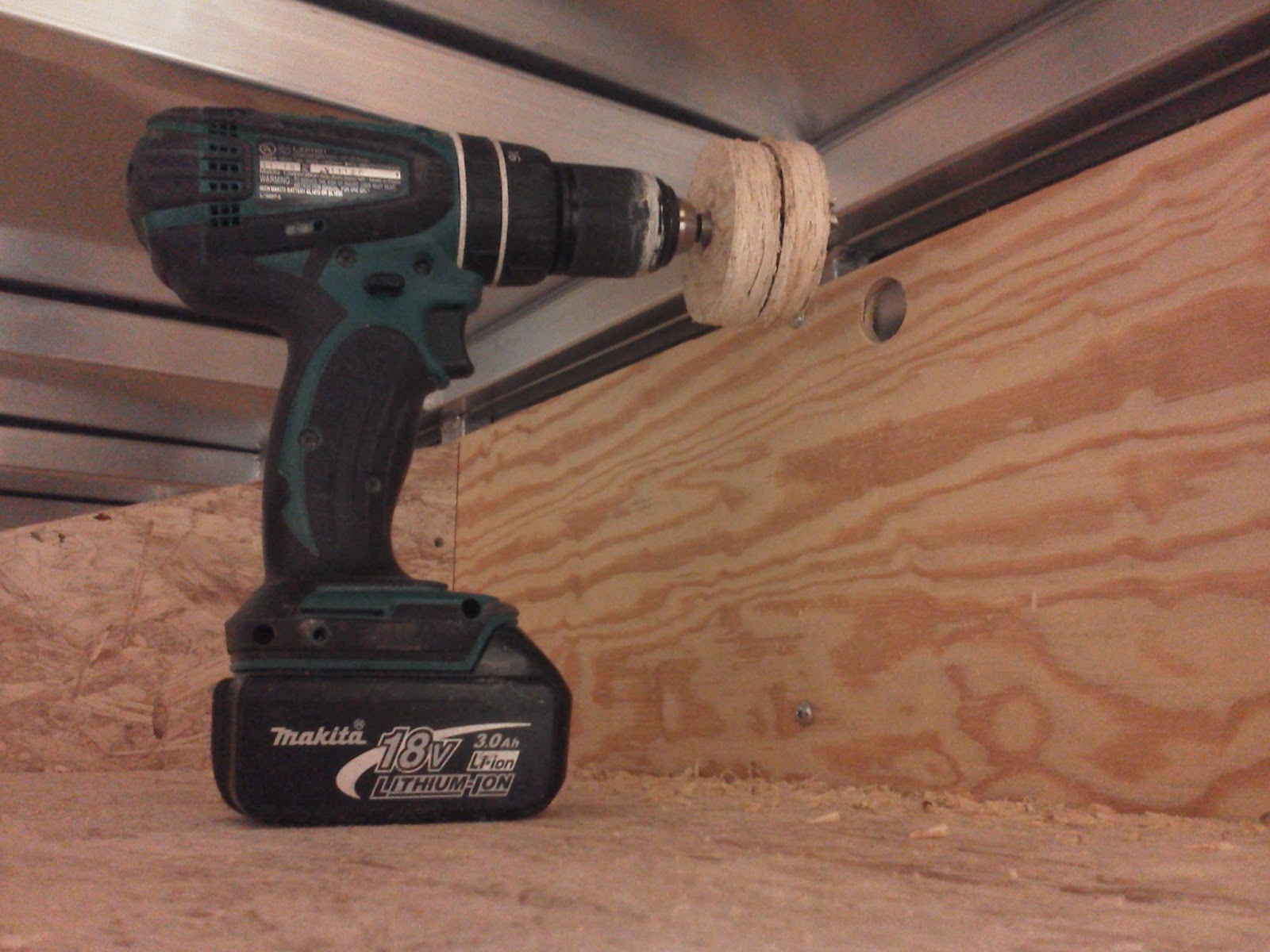

On my drill in the photo above is a wooden stop block it's purpose is to not allow the bit to punch through the skin of the trailer.

Hook Strap holes

Here you can see I installed D-Rings to secure the cages in the cubby cabinet unit and the hand truck to the wall.

The dolly truck has a tray deep enough for two large size dog cages.

It was such a snug for the kennels that I cut a hand size hole for pushing it out and rounded the edges.

All Done!
